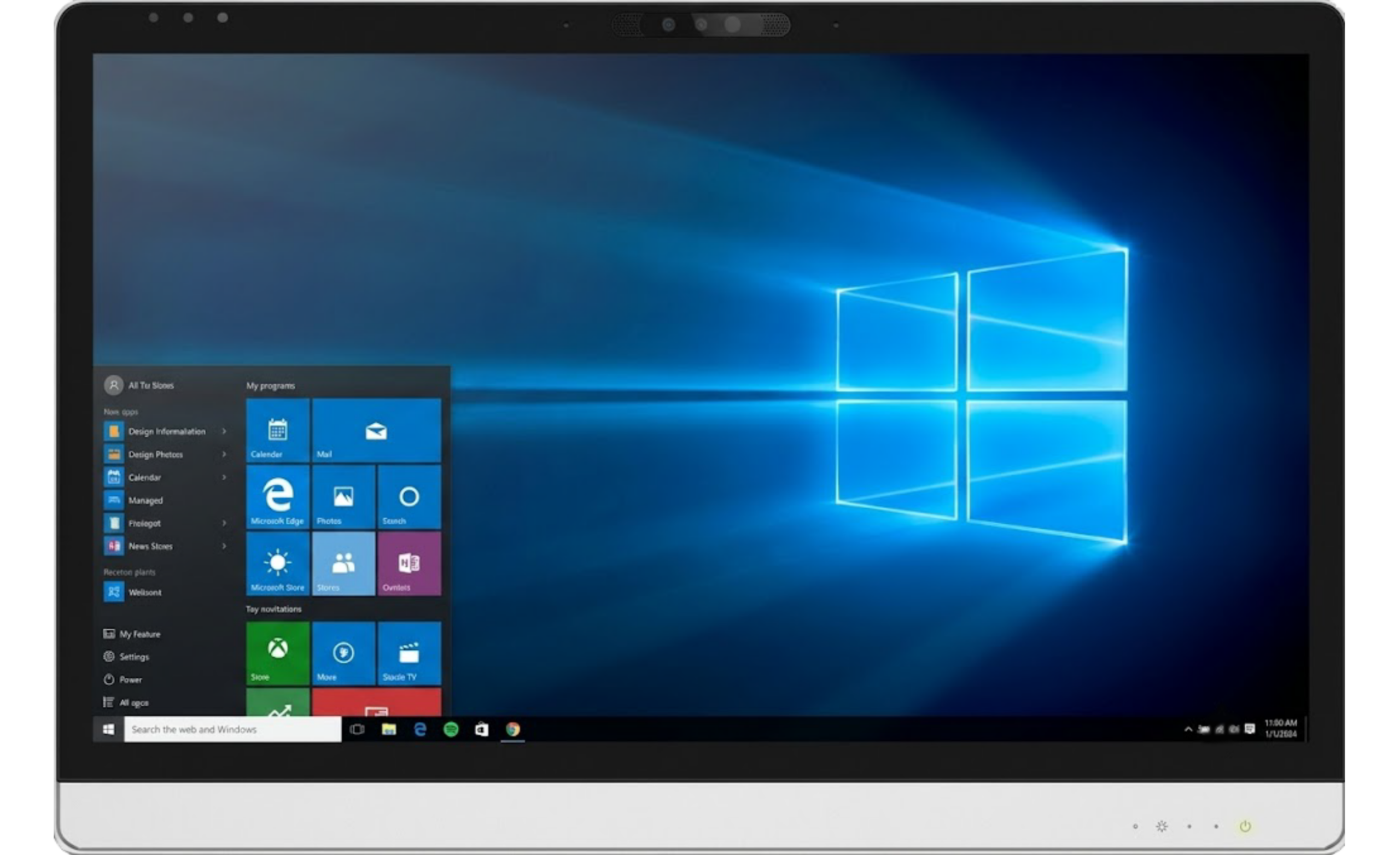

Medix 22B v2 & Medix 24B v2

DISPLAY
• LCD Size:
   ? Medix 22B v2: 21.5″ (16:9)
   ? Medix 24B v2: 23.8″ (16:9)
• Max. Resolution: 1920 x 1080
• Brightness: 250 cd/m²
• Contrast Ratio: 1000:1
• LCD Color: 16.7M
• Pixel Pitch: 0.24795mm x 0.24795mm
• Viewing Angle (H-V): 178°/178°
• Backlight MTBF: 30,000 hours

TOUCH
• Touch Screen:
   ? Projected Capacitive w/10 points
   ? Antiglare (optional)  ? Supports stylus
• Touch Controller: EETI EXC81H84

SYSTEM
• Processor:
   ? Intel® Core™ Ultra 5 Processor 125U
   ? Intel® Core™ Ultra 7 Processor 155U
• System Chipset: Meteor Lake SOC
• Graphics Controller: Intel® Graphics
• LAN Chipset: Intel I219-V
• Audio: Realtek ALC256
• System Memory: Up to 64GB DDR5 4800/5600 (2x SO-DIMM)
• BIOS: Insyde 64Mbit
• TPM: TPM 2.0 (fTPM)
• vPro: Yes (Intel vPro® Essentials)

STORAGE
• M.2 NVMe: 1x Up to 2TB NVMe M.2 2280 “M” Key (PCIe x4)

EXPANSION
• M.2:
   ? 1x M.2 (M key) supports M.2 2280 (Reserved for NVMe)
   ? 1x M.2 (E key) supports M.2 2230 (Reserved for Wifi)

OTHER FEATURES
• Cooling Method: Fanless with Heat Pipes
• Internal Speaker: 2x 5W Speakers
• OSD Buttons:
   ? 1x Power Switch
   ? 4x Function Buttons
• Media Reader:
   ? SmartCard reader Half-slot (Optional)
   ? SSO RFID (Optional)
   ? External Fingerprint Reader (Optional/Project-Based)
• WebCam: 2MP IR Front Camera (Optional)

I/O
• Video: 1x HDMI
• COM: 2x DB9 Serial RS232
• USB:
   ? 3x USB 3.2 Type A (Rear)
   ? 1x USB 3.2 Type C (Rear)
   ? 2x USB 2.0 (Side)
• LAN: 1x GbE LAN Port
• WLAN:
   ? 802.11 AX (Intel Wifi 6E AX210)
   ? Bluetooth 5.3
• Audio: 1 x Line-out
• Others:
   ? Built-in Bottom Reading Light with On/Off Switch
   ? Optional DC Output Module (12V/2.5A, 19V/1.58A, 24V/1.25A)

POWER
• Power Input Voltage: 19 VDC
• Power Connector: Barrel plug
• Battery: 3x Li-Ion 10.8V @ 8350mAh
• Power Adapter: External power adapter, 19V @6.31A

ENVIRONMENT
• Operating Temp.: 32°F to 104°F (0°C to 40°C)
• Storage Temp.: -4°F to 140°F (-20°C to 60°C)
• Relative Humidity: 0% – 90% non-condensing
• IP Level:
   ? IP65 Front
   ? IPX1 Back
• Certification:
   ? ANSI/AAMI ES60601-1
   ? IEC60601-1
   ? IEC60601-1-2
   ? FCC Part 18
   ? FCC Part 15 Class B
   ? GB 17625.1
   ? GB 4943.1
   ? GB/T 9254
   ? CE-EMC
   ? CE-RED
   ? RCM
   ? CCC
   ? RoHS
   ? WEE

PHYSICAL
• Enclosure Materials:
   ? ABS + PC Plastics Enclosure
   ? Antimicrobial Enclosure
• Dimension (W x H x D):
   ? Medix 22B v2: 20.4” x 13.6” x 1.6”
   ? Medix 22B v2: 516.9mm x 345.9mm x 40.4mm
   ? Medix 24B v2: 22.2″ x 14.6″ x 1.62″
   ? Medix 24B v2: 564.3mm x 370.8mm x 41.2mm
• Weight:
   ? Medix 22B v2: w/o battery: 14.64lb (6.64kg)
   ? Medix 22B v2: w/ 3 batteries: 17.81lb (8.08kg)
   ? Medix 24B v2: w/o battery: 16.4lb (7.44kg)
   ? Medix 24B v2: w/ 3 batteries: 19.58lb (8.88kg)
• Mounting: VESA 100, Optional Stand

FEATURES
• Battery Powered AIO
• Intel® Core™ Ultra processors (Series 1)
• Up to 64GB DDR5 4800/5600 (2x SO-DIMM)
• High Performance NVMe storage
• Antimicrobial Enclosure
• Fanless Construction with Heat Pipes
• TPM 2.0 (fTpm)
• Battery Powered Operation w/Battery LED
• Hot-Swappable Batteries for Continuous Operation
• Optional Single Sign-On RFID (Integrated)
