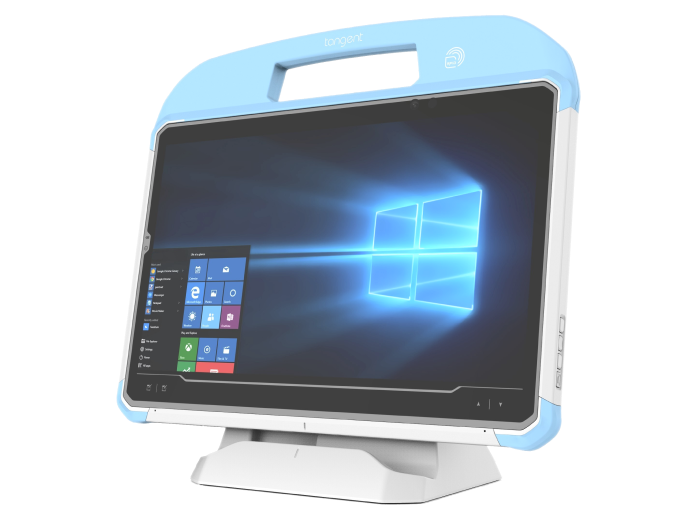

Medix T13 v6

DISPLAY
• LCD Size: 13.3” (16:9)
• Max. Resolution: 1920 x 1080
• Brightness: 1000 cd/m²
• Contrast Ratio: 1200:1
• LCD Color: 16.7M
• Pixel Pitch: 0.153 mm (H) x 0.153 mm (V)
• Viewing Angle (H-V): 178°/178°
• Backlight MTBF: 30,000 hours

TOUCH
• Touch Screen:
  ? Projected Capacitive w/ 10 points
  ? Digital Pen (Optional)
  ? Anti-Glare & Anti-Fingerprint
• Touch Controller: eGalax Touch

SYSTEM
• Processor:
  ? Intel® Core™ Ultra 5 Processor 225U
  ? Intel® Core™ Ultra 7 Processor 255U
• System Chipset: Arrow Lake SoC Integrated
• Graphics Controller: Intel UHD Graphics – Iris Xe Eligible
• LAN Chipset: Intel i219-V
• Audio: Realtek ALC256
• System Memory: Up to 32GB DDR5 (1x SO-DIMM)
• BIOS: Insyde 64Mbit
• TPM: TPM 2.0 (fTPM)

STORAGE
• M.2 NVMe: 1x M.2 2280 “M” Key for up to 2TB storage

EXPANSION
• M.2:
  ? 1x M.2 2280 “M” Key for NVMe SSD
  ? 1x M.2 2230 “A” & “E” Key for Wifi
  ? 1x M.2 2242 “B” key for 4G LTE Modern

OTHER FEATURES
• Cooling Method: Fanless
• Internal Speaker: 1x 1W Speaker
• OSD Buttons:
  ? 3x Programmable Physical Buttons
  ? 2x Programmable Touch Screen Buttons
  ? Up/Down Brightness Touch Screen Buttons
• Media Reader:
  ? 1D/2D Barcode Scanner (Optional)
  ? Dual Band RFID reader w/ SSO (Optional)
  ? Smart Card/CAC Reader (Optional)
  ? 4G LTE / 5G
  ? GPS
• WebCam:
  ? 5MP Front Camera (Optional)
  ? 13MP Rear Camera (Optional)

I/O
• USB:
  ? 1x USB 3.2 Type A (Left Side)
  ? 1x USB 3.2 Type C (Left Side)
• LAN: 1x GbE LAN Port (Left Side)
• WLAN: Intel® Wi-Fi 7 (802.11BE) with Bluetooth® 5.4
• Audio: 1x Line-Out (Left Side)
• Others:
  ? Internal Mic
  ? Desktop Charging Cradle
  ? VESA Vehicle Dock
  ? Docking Keyboard
  ? Shoulder Strap
  ? 6x Bay Battery Charger

POWER
• Power Mode: AC Adapter
• Power Input Voltage: 19 VDC
• Power Connector: Barrel Plug
• Battery:
  ? 1x Li-Ion 11.4VDC @ 3800mAh – 43.3W (Hot Swapable)
  ? 1x Li-Ion 11.4VDC @ 5400mAh – 61.5W (Hot Swapable)
  ? 1x Li-Ion 11.4VDC @ 8000mAh – 91.2W (Hot Swappable)
• Power Adapter: External Power Adapter, 19VDC @3.78A

ENVIRONMENT
• Operating Temp.: -22°F to 140°F (-30°C to 60°C)
• Storage Temp.: -67°F to 158°F (-55°C to 70°C)
• Relative Humidity: 0% ~ 90% Non-Condensing
• Shock: MIL-STD-810H Certified
• Vibration: MIL-STD-810H Certified
• IP Level: IP65
• Certification:
  ? FCC
  ? CE/CB
  ? UKCA
  ? ANSI/AAMI ES60601-1

PHYSICAL
• Enclosure Materials:
  ? ABS plastic + Magnesium/Aluminum Alloy
  ? Antimicrobial Enclosure
• Dimension (W x H x D):
  ? 12.8” x 10.7” x 0.8”
  ? 325mm x 273.5mm x 20mm
  ? w/o handle
• Weight: 3.81lbs (1.72kg)
• Mounting: Built-In Kickstand

FEATURES
• Intel® Core™ Ultra Processors (Series 2)
• Medical grade, Anti-Microbial enclosure
• Magnesium Alloy Chassis
• Hot-Swappable Battery
• Carrying handle
• Anti-Glare
