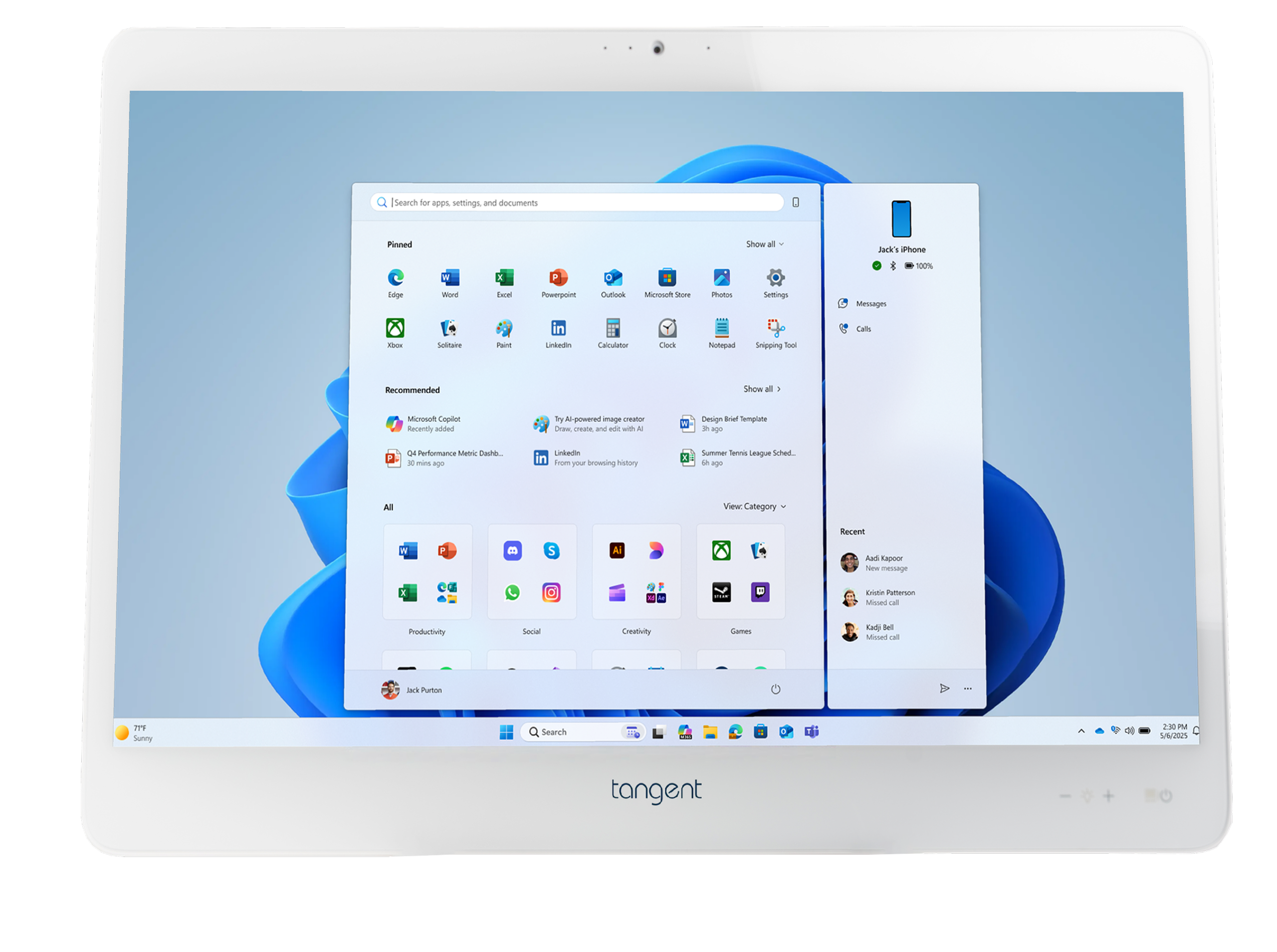

Medix 24 v3

DISPLAY
• LCD Size: 23.8″ (16:9)
• Max. Resolution: 1920 x 1080
• Brightness: 250 cd/m²
• Contrast Ratio: 1000:1
• LCD Color: 16.7M
• Pixel Pitch: 0.274mm x 0.274mm
• Viewing Angle (H-V): 178°/178°
• Backlight MTBF: 30,000 hours

TOUCH
• Touch Screen: 10 Points Projected Capacitive (PCAP) Multi-Touch Display with Dual Layers Glove Support
• Touch Controller: EETI

SYSTEM
• Processor:
  ? Intel® Core™ Ultra 5 Processor 135U
  ? Intel® Core™ Ultra 7 Processor 165U
• System Chipset: Meteor Lake U SOC
• Graphics Controller: Integrated Intel® Graphics
• LAN Chipset: Intel I219-LM & I226LM
• Audio: Realtek ALC256
• System Memory: Up to 96GB DDR5 5600 (2x SO-DIMM)
• BIOS: Insyde 64Mbit
• TPM: TPM 2.0 Nuvoton (dTPM)
• vPro: Yes (Intel vPro® Enterprise)

STORAGE
• M.2 NVMe: Up to 2 x 4TB NVMe M.2 2280 “M” Key (PCIe x4)

EXPANSION
• M.2:
  ? 1x M.2 A/E key slot
  ? 1x M.2 2280 B/M key slot

OTHER FEATURES
• Cooling Method: Fanless with Heat Pipes
• Internal Speaker: 2x 3W Speakers
• OSD Buttons:
  ? 1x Power Button
  ? 4x Touch Button (LCD On & Off / Brightness On & Off)
• Media Reader:
  ? SSO RFID location: Front Tangent Logo (Optional)
  ? Keystroke RFID location: Front Tangent Logo (Optional)
• WebCam:
  ? 2MP Camera w/ Sliding Cover
  ? Active noise cancellation mic (ANC)

I/O
• Video: 1x HDMI
• COM:
  ? 4x RJ48 RS232 Serial Ports
  ? Optional RJ48 to DB9 adapter cables
• USB:
  ? 2x USB 3.0 Type A (Rear)
  ? 2x USB 3.2 Type C (w/DP support) (Rear)
  ? 4x USB 2.0 Type A (Rear)
  ? 1x USB 2.0 Type A (Side)
• LAN:
  ? 1x 2.5GbE LAN Port
  ? 1x GbE LAN Port
• WLAN:
  ? Wi-Fi 802.11BE (Intel® Wi-Fi 7 BE200)
  ? Bluetooth 5.4
• Audio: 1 x Line-Out / Line-In
• Others: Built-in Bottom Reading Light with On/Off Switch

Additional information can be found on the spec sheet

• Intel® Core™ Ultra processors (Series 1)
• Fanless Construction with Heat Pipes
• TPM 2.0 (Nuvoton dTPM) for Security
• Dual M.2 NVMe Storage Slots
• Integrated Intel Graphics Controller
• Intel vPro® Enterprise
